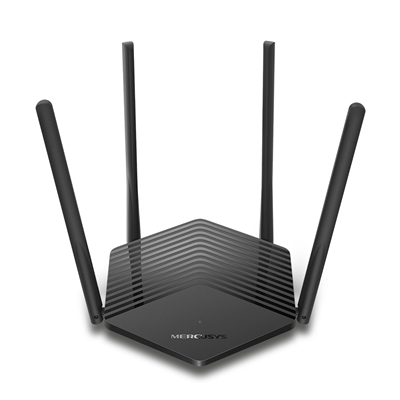

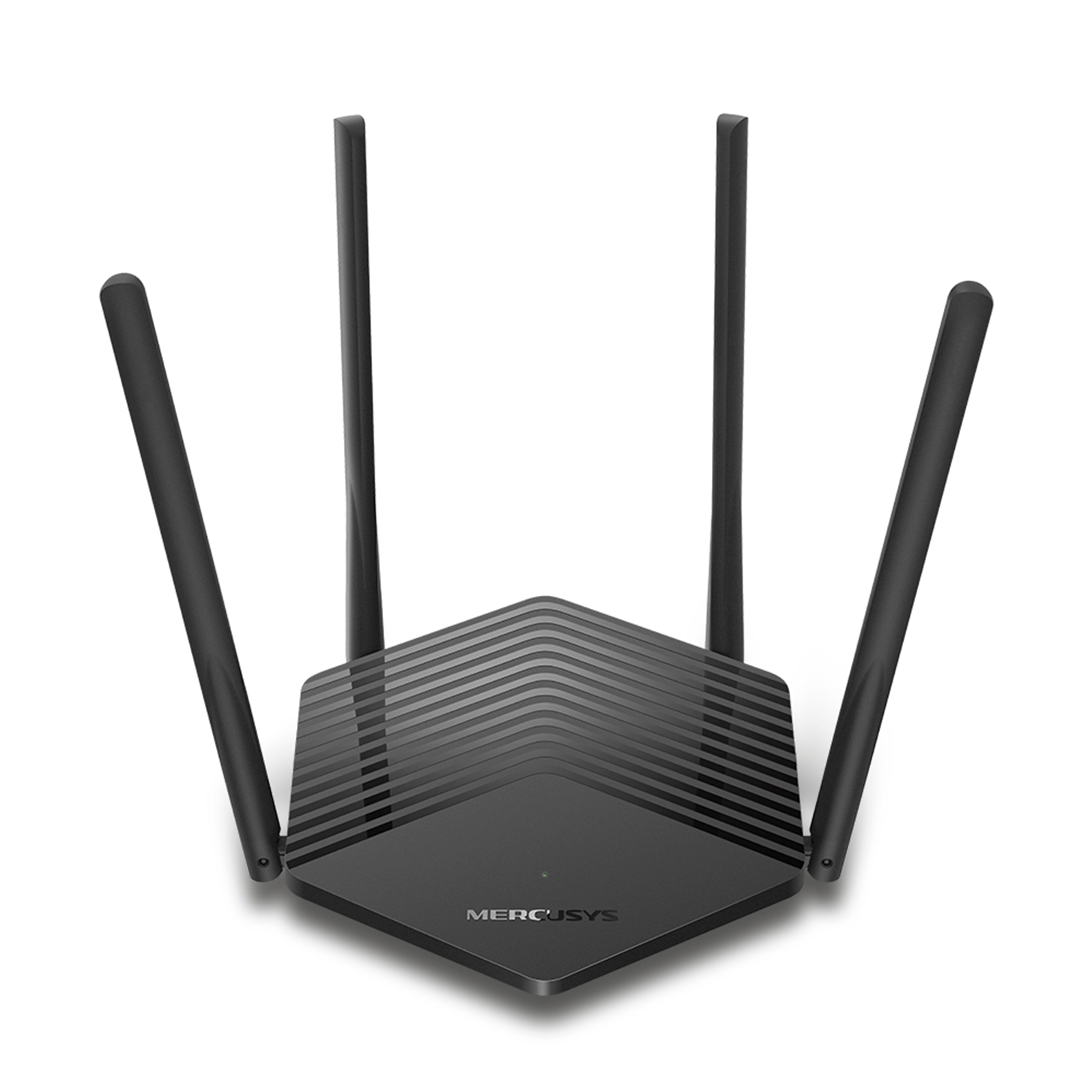

Mercusys MR60X AX1500 Dual-Band Wi-Fi 6 Router

Mercusys MR60X AX1500 WiFi 6 Router

Upgrade Your Network with Wi-Fi 6
MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions.

Faster 1.5 Gbps Speeds
Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)

Improved Network Capacity
OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency

Broader, Stronger Coverage
4x multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

Gigabit Wired Connections
Make full use of your internet access and transfer data at dizzying speeds for peak performance

Overall Security Protection
The latest WPA3 provides improved WiFi security

Less WiFi Interference
Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color

Smart Connect
Intelligently chooses the best available band for each device

Specifications

Wireless

Wireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

Signal Rate
1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz)

Reception Sensitivity
11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-78dBm
11a 6Mbps:-94dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS8:-70dBm
11ac VHT80 MCS8:-65dBm

Wireless Security
WPA / WPA2-Personal
WPA2 / WPA3-Personal

Wireless Functions
Enable/Disable Wireless Radio, WMM

Software
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Access Control
Local Management
Remote Management

DHCP
Server, DHCP Client List

NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security
SPI Firewall, IP and MAC Address Binding

Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network

Hardware

Dimensions (W X D X H)
6.9 x 6.2 x 1.8 in (175.6 x 157.2 x 45 mm)

Interfaces
1x Gigabit WAN Port + 2x Gigabit LAN Ports

Button
Reset/WPS Button

Antenna Type
4x 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents
AX1500 Wi-Fi 6 Router MR60X
Power Adapter
Quick Installation Guide
RJ45 Ethernet Cable

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
