Simply connect the Powerline 600 Mini adapter to your existing Internet modem through an Ethernet port and you will immediately have an Internet connection available at any power socket. Then, by using a Powerline Wi-Fi 600 adapter, you can create a new Wi-Fi hotspot in the room of your choice and extend your Wi-Fi home coverage in minutes. No new wires required! Connect computers, consumer electronics, smartphones, tablets, and additional network-compatible devices to the Internet simply by using your power outlets. The installation is extremely easy with zero-time configuration and requires no expertise. With the Powerline Wi-Fi 600 Kit, create your own Wi-Fi hotspot at speeds up to 300 Mbit/s in any power socket of your home and extend your Wi-Fi network further.
Technical specifications
Powerline Wi-Fi 600 Adapter Mini
Frequency Wi-Fi: 2.4 GHz
Frequency Powerline: 2 MHz ~ 68 MHz
Standards Wi-Fi: IEEE 802.3, IEEE 802.3u, IEEE 802.11n/b/g
Standards Powerline: HomePlugâ„¢ AV, IEEE 802.3, IEEE 802.3u, IEEE 802.11n/b/g
Signal Rate Wi-Fi: Up to 300 Mbit/s
Signal Rate Powerline: Up to 600 Mbit/s
Security Wi-Fi: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Security Powerline: 128 bit AES
Transmit Power Wi-Fi: Europe: <20 dBm
Ethernet Ports: 2x 10/100 Mbps LAN port (Auto MDI/MDIX)
Button: Connect & Secure (WPS), Reset
LEDs: Power, Ethernet, Powerline, Wi-Fi
Size (WxDxH) in mm: 63x68x75
Weight in kg: 0.0946
Powerline 600 Adapter Mini
Frequency: 2 MHz ~ 68 MHz
Standards: HomePlugâ„¢ AV, IEEE 802.3, IEEE 802.3u, IEEE 802.11n/b/g
Interface: 10/100M Ethernet
Button: Connect & Secure/Reset
LEDs: Power, Powerline, Ethernet
Security: 128 bit AES
Range: Up to 300 meters over electric circuit
Size (WxDxH) in mm: 63x68x75
Weight in kg: 0.079
OTHERS
Certification: CE

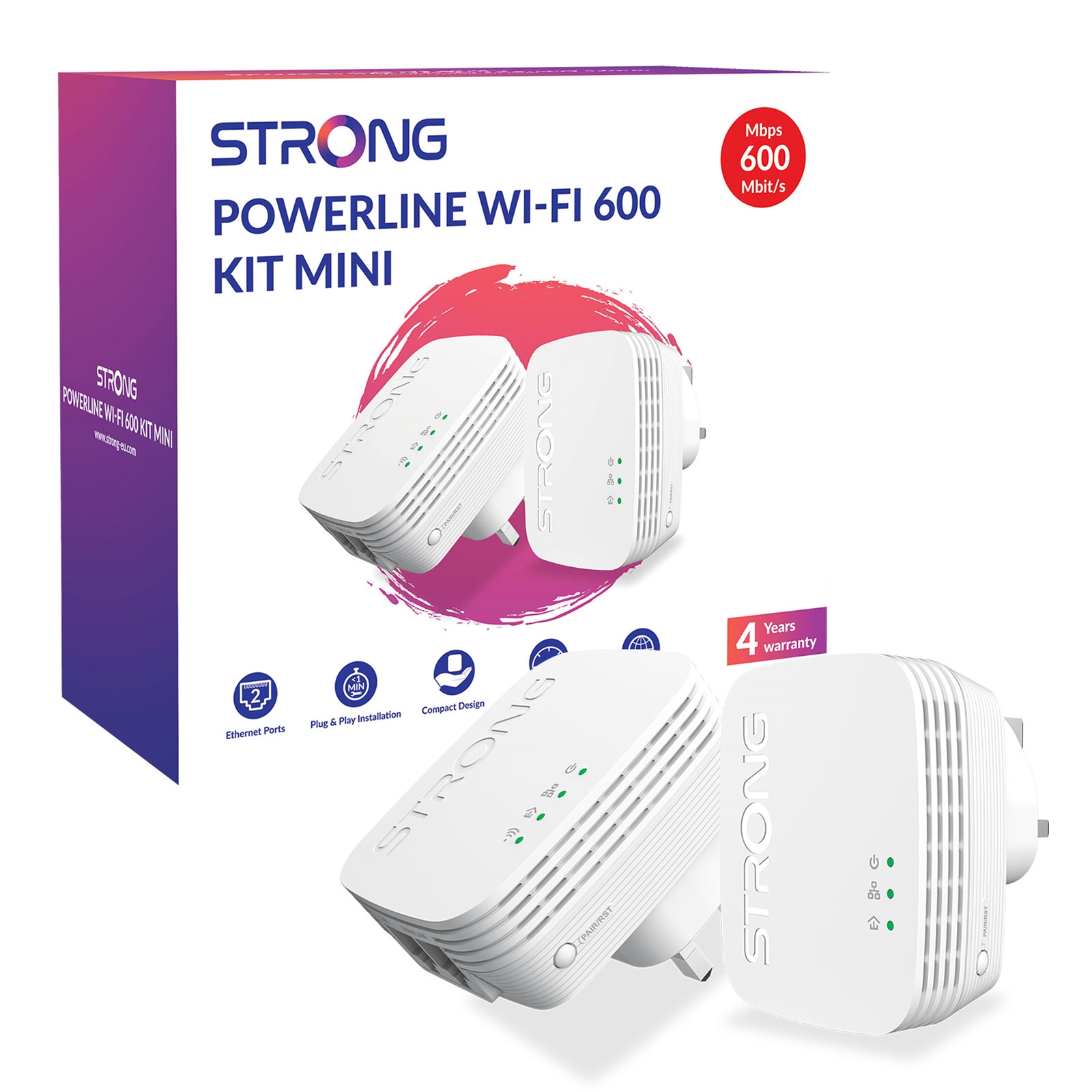

Package contents: 1x Powerline Wi-Fi 600 Mini Adapter, 1x Powerline 600 Mini Adapter, 2x Ethernet cables, Installation instructions
System requirements: Windows 7, 8, 8.1, 10, Mac OS X, Linux, Internet Browser
Environment
Operating temperature: 0 °C ~ +40 °C
Storage temperature: -40 °C ~ +70 °C
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
